Ambience Database

The idea here is to record ambient state of my residence.

What’s the Impetus?

As I’ve aged, the quality of my sleep has deteriorated. Naturally, I’d like to fix this. How might I go about doing so? Collect data.

This page is limited to how I record ambient measures of the room in which I regularly sleep. My hope is to combine this with the sleep quality data from a wearable to identify any trends.

The Set Up

I have a raspberrypi with a SenseHat attachment. After installing the sense-hat python package, I created a script which records each of the following

  • Temperature (in Celcius)
  • Pressure (in Millibars)
  • Humidity (percentage)
  • Orientation (in degrees)
    • pitch
    • roll
    • yaw
  • Acceleration (in G’s)
    • pitch
    • roll
    • yaw

to a dated csv stored on the pi. This script then runs at an arbirary time interval via cron—currently set to every five minutes. Note, unless my neighbors are especially amorous or another earthquake hits SLC, I don’t expect much variation in orientation or acceleration.

I have also set up a PostgreSQL database and schema in which to store these data. This is accomplished through an Airflow DAG on a daily basis. Both the postgres database and the Airflow instance are hosted locally on a home server.

Where Things Stand

The data look as follows:

# select * from ambience.readings limit 5;
  reading_id              |         reading_dttm          |        temp        |     pressure     |      humidity      |        pitch        |        roll         |        yaw        |        accel_x        |        accel_y        |      accel_z       | location_id
 27a460d1-928a-49e1-a33f-62c4606fbbcf | 2022-12-29 00:00:02.932521-07 | 22.219310760498047 |   859.7646484375 |  35.38669204711914 |    0.34020350498699 |  0.0418293824830006 | 94.41492750094768 | -0.004689877387136221 | 0.0009711703169159591 | 0.9981822967529297 |           1
 50ceb4c5-c04e-4497-9eac-2a643d5fd697 | 2022-12-29 00:05:02.104901-07 | 22.972414016723633 |  859.77880859375 |  33.82246017456055 | 0.29746076813043193 | 0.06966456780039794 | 91.60975514844512 | -0.004689877387136221 | 0.0009711703169159591 | 0.9991570711135864 |           1
 ca54aa1e-a92e-4bbe-b367-be8f61d17c97 | 2022-12-29 00:10:02.276927-07 |  23.45655059814453 | 859.777099609375 | 32.911014556884766 | 0.34036972404374455 | 0.05579976736800138 |  96.9448090789529 | -0.005430384073406458 | 0.0009711703169159591 | 0.9986696839332581 |           1
 25e3f8c9-ab45-4785-baf1-37095a4ebb97 | 2022-12-29 00:15:02.45868-07  | 22.918621063232422 |    859.775390625 | 33.646942138671875 | 0.35420520602253097 | 0.05574527259698673 | 91.45738728844047 | -0.005677219945937395 | 0.0016995479818433523 | 0.9974511861801147 |           1
 24d3f874-8e1e-4337-96e8-e029dcbf5337 | 2022-12-29 00:20:02.712625-07 | 22.524137496948242 | 859.703369140625 | 34.145774841308594 | 0.36810341368389043 | 0.05570447155484516 | 92.92499686559027 | -0.006170891225337982 | 0.0009711703169159591 | 0.9989133477210999 |           1

Below and Above, LOCATION_ID indicates the physical location as described in the ambience.location table, e.g. address, etc. of the pi (information I’m not keen to share publicly).
As of August 20, 2023, the queries below have the following results.

# select location_id,min(reading_dttm),max(reading_dttm) from ambience.readings group by location_id;
1 | 2022-12-27 00:00:02.845534-07 | 2023-08-18 23:55:02.191325-06

# select location_id,count(*) as reading_count from ambience.readings group by location_id;
1 |        463939

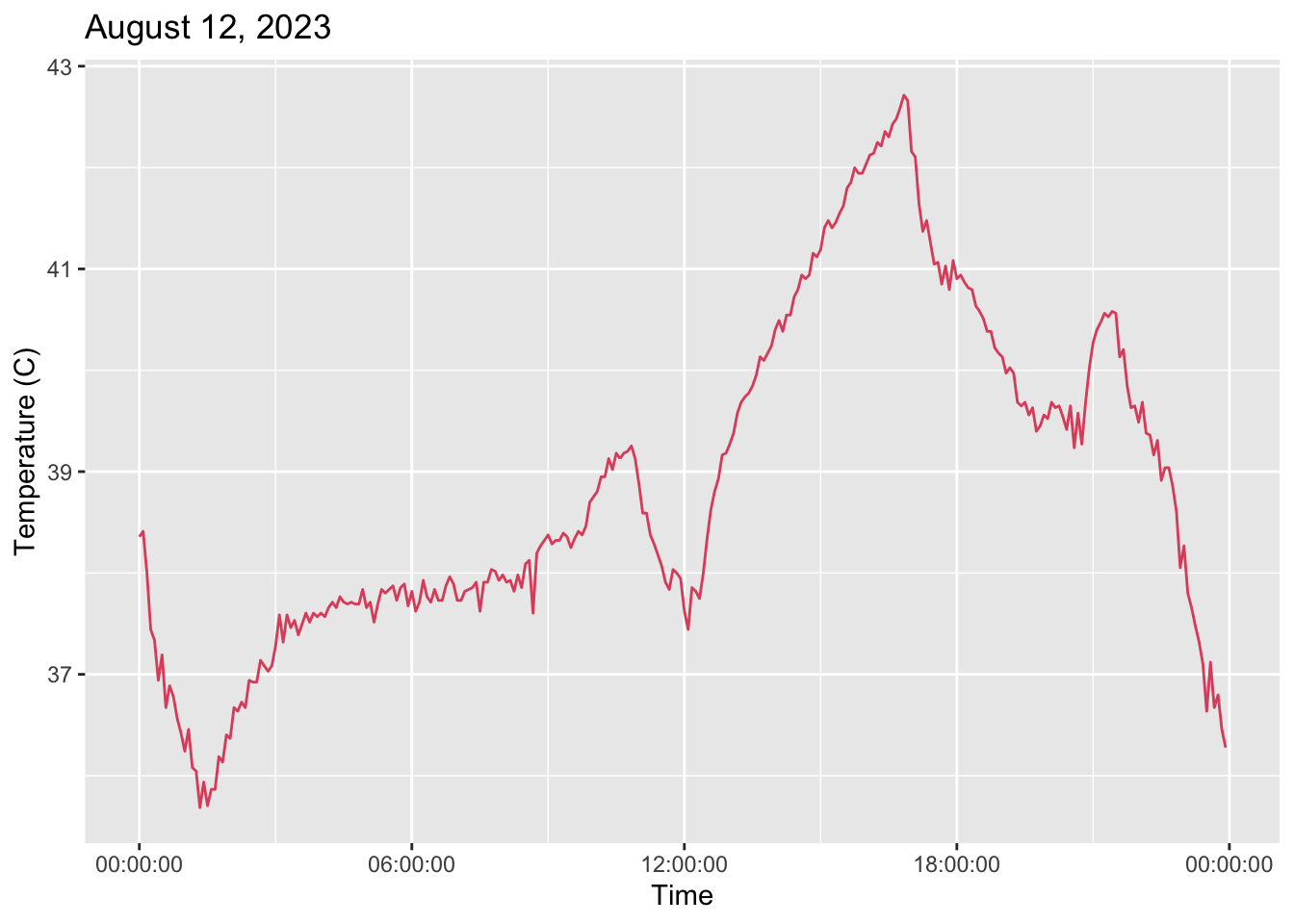

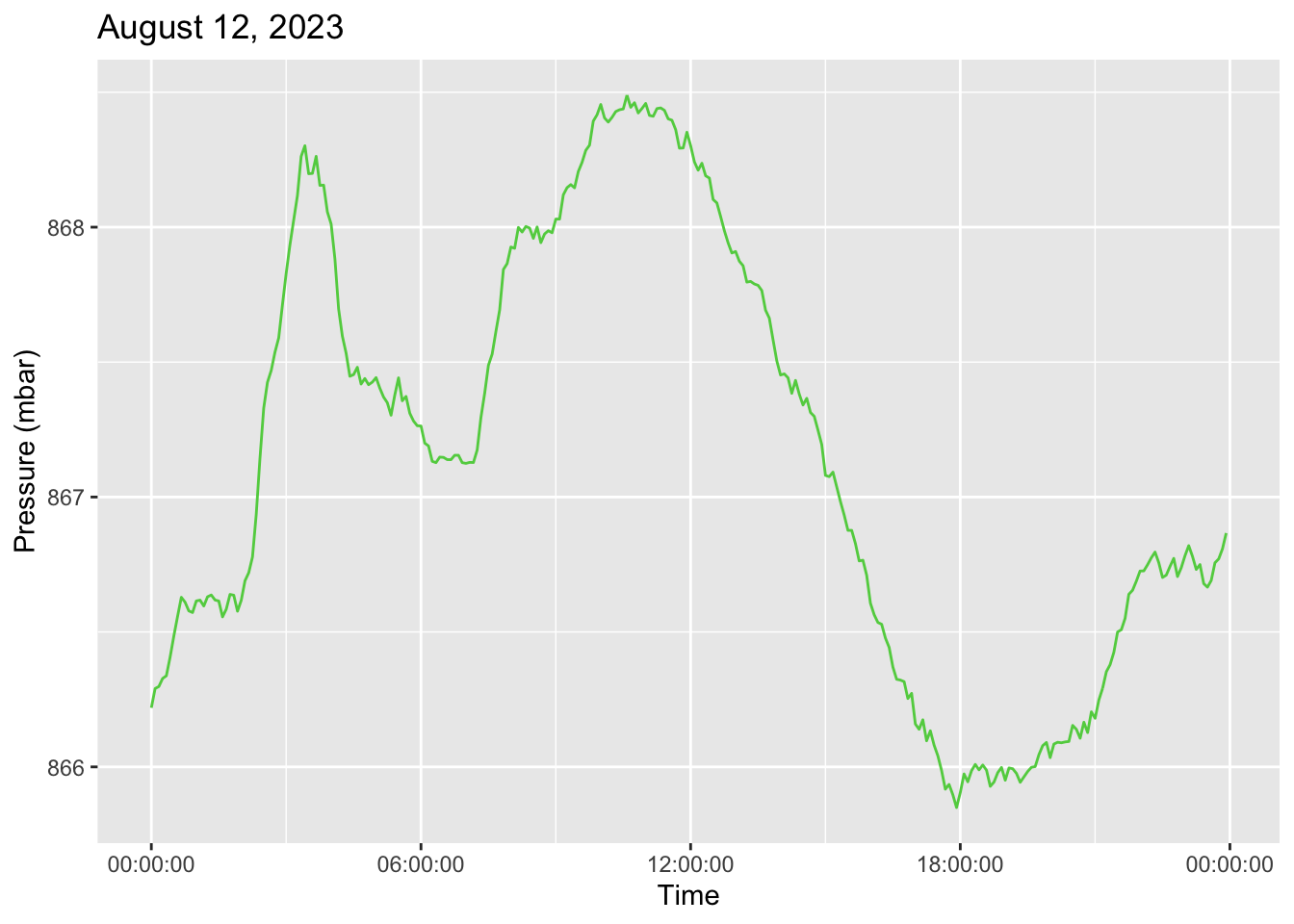

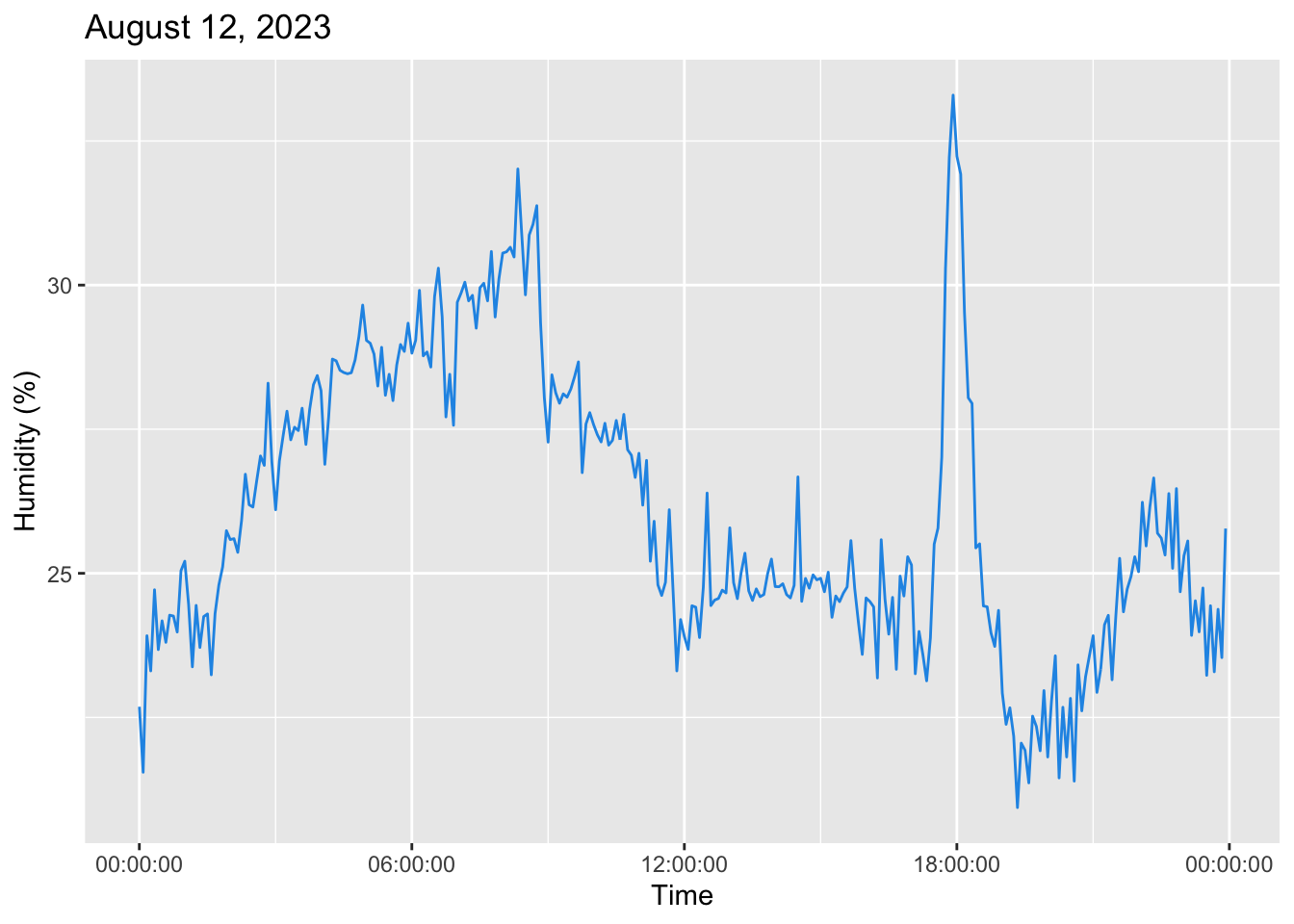

When graphed in R’s ggplot the data appear as follows.

Possible Extensions

Create a recurring jupyter notebook or Rmarkdown report which demonstrates the database state, updated on a regular basis. Done!

Adding a second raspberrypi-sensehat, placing it in my living room to look for any deviations between rooms. Done!

Comparing the ambient measures in my bedroom (and/or living room) against the external weather to estimate my electricity and/or heating bill.

Concluding Thoughts

Does this code make use of best practices?
Likely not. I make no claims to being a data engineer.

Does it work?
It does.

Have you done anything with this data?
I have produced two reports that update regularly.

Tools Applied / Learned


1
2
3

Airflow is a remarkably robust scheduling tool, commonly used in ETL processes. Here, I use it to pull data recorded on and by the pi to the database.

Postgres a.k.a. PostgreSQL is a free and open-source Relational Database Management System---a flavor of SQL database. It is the distribution I use to store the data.

RaspberryPi's are remarkable! They have any number of applications and potential projects.
